Shengbaihui Doors and Windows' Main Product Promotion Catalogue for 2025

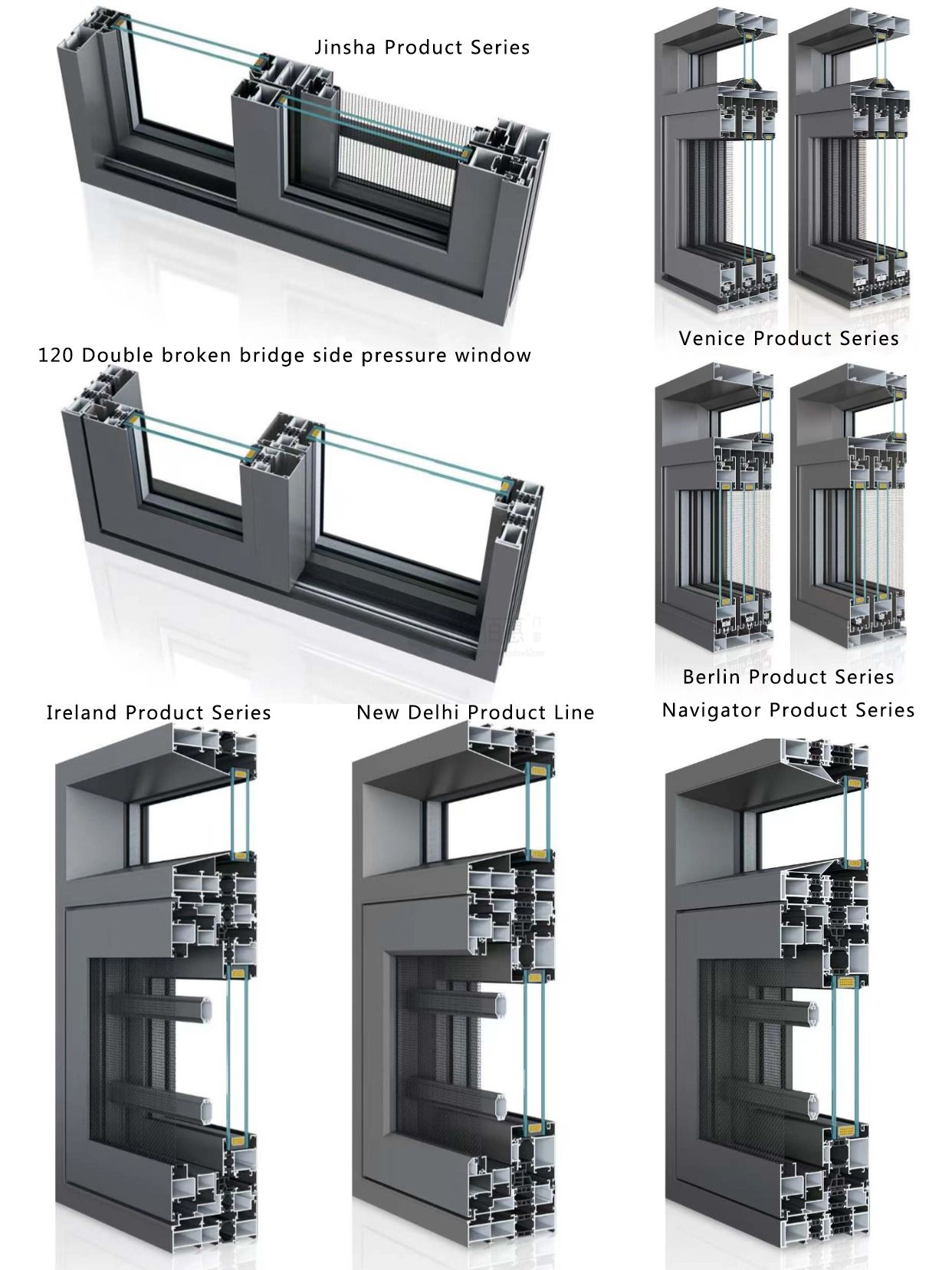

Venice Product Series

Product Description

Profile Surface: 6063-T5 Virgin Aluminum Profiles (Iron Content: Fe: 0.16)

Three-track Frame: 154mm (1.8)

Two-track Frame: 102mm (2.0)

Sash: 65*38 (1.4/1.8/3.0)

Full material usage with uniform thickness, and reinforced in key stress areas

The series adopts EPDM sealing strips and siliconized laminated wool strips

Windproof, waterproof and sound insulation; 8 layers of siliconized pile sealing with foam airtight gasket

Step-by-step drainage design ensures smooth drainage and attractive exterior appearance

Optional brass strip/stainless steel track/flat track/high-low track

High-strength stainless steel tracks for smoother sliding performance and better load-bearing capacity

Glass Configuration: 5+15A+5 Double-layer Xinyi Black Insulated Glass

Top wheels feature typhoon-resistant adjustable safety anti-sway and derailment prevention support; the lower wheel track raised water-proof edge design

Standard hardware: Emaok rollers

Standard 304 Stainless Steel Security Mesh/High Transparency Mesh for broader view.

Berlin Product Series

Product Description

Profile surface: 6063-T5 virgin aluminum profile

(iron content: Fe: 0.16)

Three-track frame: 162mm (2.0/3.0)

Two-track frame: 125mm (2.0/3.0)

Sash: 68*50 (2.0/3.0)

High-strength stainless steel track, smoother sliding and better load-bearing performance

Glass configuration: 5+24A+5 double-layer Xinyi black insulating glass

Ample profile material with even thickness, and reinforced at special stress points

Series adopts EPDM sealing strips and siliconized clip-on wool pile

Windproof, waterproof, soundproof, with 8 layers of siliconized wool pile seals and foam airtight sealing strips

Integrated bent hollow aluminum strip ensures long-term quality stability and excellent overall performance

Step drainage design for smooth water discharge and aesthetic appearance

Top rollers adopt typhoon-resistant adjustable safety anti-sway and derailment-proof support with elevated rail water-proof edge design

Standard equipped with 304 stainless steel security mesh/high visibility mesh for wider view

Berlin series optional brass strip/stainless steel rail/raised/lowered track

Standard hardware: CMECH lock set/Emaok roller.

Jinsha Product Series

Product Description

Frame 102mm, surface material is 6063-T5 virgin aluminum profile

(Iron content: Fe: 0.16)

Glass Configuration: 5+15A+5 double tempered Xinyi black insulating glass, better sound insulation effect

Integral inward opening sash with insect screen

Frame 2.0/Sash 2.0 thickness (Frame 2.0/Sash 3.0 thickness)

Multiple types of safety railings available for selection

Series adopts EPDM sealing strips and siliconized clip-on wool pile, providing better windproof, waterproof and noise reduction performance

Hardware, floor wheels: Emaok / Handle: (German Hörmann OAOSM)

Interior and exterior flush frame design structure makes the entire window more aesthetically pleasing

Special solution for fixing large glass panels, enhanced mullion design ensures high strength and optimal appearance for large glass

Integrated structural design of glass panel, guardrail and insect screen allows easier opening, removal and better aesthetics, improved insect-proof sealing performance

Glass fixation method adopts diamond-shaped small chamfered glazing design to ensure excellent sealing and safety performance of the entire window, enhancing wind resistance for large glass panels.

120 Double broken bridge side pressure window (Lift-and-slide Type)

Product Description

Frame 120mm Wide, Wall Thickness: 2.5mm Thick, Surface Made of 6063-T5 Virgin Aluminum Profile (Iron Content: Fe: 0.16)

Double-broken bridge outer frame six-chamber design structure, Effectively Enhancing Overall Window Strength, Thermal Insulation and Heat Preservation Performance

Beveled Edge Compression, Simple and Smooth Lines, Easy Installation, Floor Drain Straight Drainage Design Ensures Smooth Water Discharge, Sleek Appearance and Effectively Prevents Rainwater Backflow

Can Be Used as a Safety Railing, Optional Split Glass Railing, Dedicated Fixed Large Glass Solution, Reinforced Mullion Design Scheme to Achieve the Best Aesthetic Effect with High Strength for Large Glass

Glass Fixing Method Uses Closed Beveled Edge Trim Design Structure, Ensuring the Sealing and Safety Performance of the Entire Window, Guaranteeing Wind Resistance Safety for Large Glass.

Corner Connection Uses Corner Code Injection Molding Technology, Frame and Sash Apply Cross-section Waterproof Glue, and Stainless Steel Injection Molding Corner Joining Technology, Enhancing the Overall Window Strength Performance, and Achieving Optimal Waterproof Performance

Thermal Break Strips Use Double-layer PA66-GF25 Nylon High-performance Thermal Break Strips, Adopting Rutterdam Brand Thermal Break Strips (National Standard PA66), Multi-chamber Dual Thermal Break Strip Design Enhances Profile Strength, Reduces Tolerance Caused by Slot Grooving, Offering Advantages Such as Reduced Thermal Conduction, Energy Saving, Noise Reduction, etc.

Adopts EPDM (Ethylene Propylene Diene Monomer) Composite Foamed Gasket, Superior Sealing Performance, Excellent Elasticity and Resistance to Compression Deformation, Aging Resistance, Ozone Resistance, Chemical Resistance, etc.

Triple Sealing Uses EPDM Integrated Microwave Vulcanization Connected Ethylene Propylene Diene Monomer (EPDM) Composite Integral Duckbill Gasket, Providing Better Sound Insulation and Stronger Sealing Effect

The Opening Does Not Occupy Indoor Space, Offers Large Ventilation Area, Excellent Air Circulation, Can Function As Door or Window, Opening Window Can Stay at Any Position Enabling Micro Ventilation

5+20A+5 Double-layer Hollow Tempered Glass, Integral Bending Black Aluminum Strip, Filled with Inert Gas, Anti-frost, Thermal Insulation and Noise Reduction

Hardware: Standard Equipped with German Hörmann (OAOSM).

Ireland Product Series（Broken bridge casement window）

Product Description

Frame 110mm, wall thickness 1.8mm, surface made of 6063-T5 virgin aluminum profile(Iron content: Fe: 0.16)

Beveled edge pressing design, simple lines, easy installation, vertical thermal line,better airtightness

Gravity drainage design, smooth drainage, neat and aesthetic appearance,effectively preventing rainwater backflow

Multiple types of safety railings available as options

Inside-and-outside flush frame (integrated with sub-frame) design, glass vertically integrated for equal temperature, providing better sound insulation, thermal insulation and airtightness

Miter connection adopts pin corner code technology, frame and sash coated with cross-section waterproof adhesive, and stainless steel injection molding mitering process, enhancing window strength and achieving optimal waterproof performance

Thermal break strip adopts single-layer PA66-GF25 nylon high-insulation strip, using Rutterdam thermal break strip (National Standard PA66), which reduces heat conduction, improves thermal insulation and energy saving, and lowers noise

EPDM composite foam gasket is adopted, offering superior sealing performance, excellent elasticity, anti-compression deformation, aging resistance, ozone resistance and chemical resistance

The three seals adopt EPDM one-piece microwave vulcanization connection EPDM composite integral duckbill rubber strips, which are more soundproof and have a stronger sealing effect

Glass configuration: 5+20A+5 double-layer insulated tempered glass, one-piece bent black aluminum spacer bar, filled with argon gas, anti-frost, anti-fogging, thermal insulation and noise reduction

Standard safety rope, lifting block, inside and outside dust-proof strips; the screen sash adopts inside-and-outside anti-collision corner protection technology to prevent accidental scratches on skin or clothes, truly achieving safe, aesthetic no-head-bumping and no-scratching dual insurance

Standard 304# high-visibility mesh on screen sash, offering clear vision and better ventilation; optional 304# diamond mesh material for enhanced safety and durability

Hardware: standard equipped with German Homann (OAOSM), optional CMECH.

New Delhi Product Line（Broken bridge casement window）

Product Description

Frame 115mm, wall thickness 2.0mm, profile surface made of 6063-T5 virgin aluminum profiles (iron content: Fe: 0.16)

Beveled edge pressing, simple lines, convenient installation,vertical thermal break line for improved airtightness

Inside and outside flat frame (integrated with sub-frame) design, glass with vertical thermal break line integrated structure, providing better sound insulation, thermal insulation and airtight performance

Corner connection uses pin-dowel corner code technology, frame and sash coated with cross-section waterproof adhesive, and stainless steel injection molding corner joint process, enhancing overall window strength and achieving optimal waterproof performance

The floor drain drainage design ensures smooth drainage, a simple and elegant appearance, and effectively prevents rainwater from flowing back

Double PA66-GF25 nylon high-insulation strips using Rotterdam insulation strips (national standard PA66), offering reduced heat transfer, energy conservation, thermal insulation and noise reduction benefits

Uses EPDM composite foam rubber gasket with enhanced sealing performance, excellent elasticity, resistance to compression deformation, aging resistance, ozone resistance, and chemical resistance

The three seals adopt EPDM one-piece microwave vulcanization connection EPDM composite integral duckbill rubber strips, which are more soundproof and have a stronger sealing effect

Glass configuration: 5+20A+5 double-glazed tempered glass, one-piece bent black aluminum spacer bar filled with argon gas, anti-frost, fog-proof, heat-insulating and noise-reducing

Standard safety rope, lifting block, inner and outer dustproof strips; the screen sash adopts internal and external impact-resistant corner protection technology to prevent accidental skin or clothing scratches, truly achieving safe and aesthetically pleasing collision-free and scratch-free dual protection

Screen sash standard equipped with 304# high-transparency mesh, clear vision and better ventilation; optional 304# stainless steel security mesh available for enhanced durability and safety

Hardware: standard German Hörmann (OAOSM), optional CMECH.

Navigator Product Series(Double Thermal Break Casement Window)

Product Description

Frame depth 120mm, wall thickness 2.5mm, profile material is 6063-T5 virgin aluminum alloy (Iron content: Fe: 0.16)

Outer frame features a six-chamber dual thermal break structural design,effectively enhancing overall window strength as well as thermal insulation and heat preservation performance

Beveled edge pressing design with simple lines ensures convenient installation;gravity drainage system provides smooth water discharge, aesthetic appearance,and effectively prevents rainwater backflow

Multiple safety guardrail options available; dedicated solution for fixed large glass panels. Reinforced mullion design achieves optimal visual appeal while maintaining high strength for large glass panels. Glass fixation adopts closed-type beveled edge pressing structure to ensure sealing safety of the entire window, guaranteeing wind resistance safety for large glass

Corner connections use pin joint angle code technology, frame and sash coated with cross-section waterproof adhesive, combined with stainless steel injection corner joining process, enhancing overall window strength and achieving optimal waterproof performance

Thermal break strips are double-layer PA66-GF25 nylon high-performance thermal break strips, using Rutterdam brand thermal break strips (National Standard PA66). Multi-chamber dual thermal break strip design enhances profile strength, reduces dimensional tolerance caused during slot thermal break strip insertion, effectively reducing heat conduction, improving thermal insulation and energy efficiency, and lowering noise levels

EPDM (Ethylene Propylene Diene Monomer) composite foam gasket used offers better sealing performance, excellent elasticity, compression deformation resistance, aging resistance, ozone resistance, and chemical corrosion resistance

Three-seal system utilizes EPDM one-piece microwave vulcanized connected compound duckbill gasket, providing enhanced sound insulation and superior sealing performance

Inside-and-out flush frame (integrated with sub-frame) design aligns the glass vertical isotherm line, offering better soundproofing, thermal insulation, and air tightness

5+20A+5 double-glazed tempered glass, one-piece bent black aluminum spacer bar, filled with argon gas to prevent condensation and fogging, providing thermal insulation and noise reduction

Standard insect screen made of 304# high transparency mesh ensures clear visibility and improved ventilation; optional 304# stainless steel diamond mesh available for enhanced security and durability

Standard configuration includes fall-prevention rope, lifting block, inner and outer dust-proof strips. The insect screen uses inner and outer anti-collision corner protection technology to prevent accidental scratches on skin or clothing, truly achieving safe, aesthetically pleasing design that avoids head collision and scratching, offering dual safety assurance.

The above are not all our products and prices. For quotes on other models, costs of additional items, or custom solutions, please feel free to contact us at any time. You are also welcome to visit our factory.
